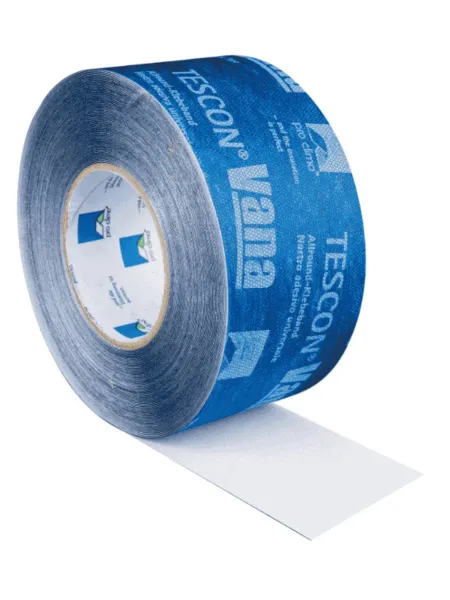

TESCON VANA is the all-round tape with a fleece carrier for airtight bonding indoors and outdoors. The waterproof adhesive holds even in damp conditions, and the tape can be torn off by hand and plastered over directly.
Roll 75 mm × 30 m
Use indoors and outdoors
Weathering up to 6 months exposed
Suitable for connections to DIN 4108-7
One tape for indoors and outdoors
Depending on where it is used, TESCON VANA bonds airtight or windtight. Choose the location:
Indoorsairtight
Bonds vapour barriers, airtightness membranes and airtight wood-based boards at joints and connections, including smooth components such as pipe penetrations and roof windows.
Outdoorswindtight
Bonds above-rafter and renovation vapour barriers as well as underlay, sarking and wall sheathing membranes and wood-based boards used as sub-roofing. The tape may be left exposed to the weather for up to 6 months.
Where does TESCON VANA fit, and where not?
Not every bonding point needs the same product. The substrate is what matters most.
Bonding point
Suitable product
Note
Joints of vapour barriers, airtightness and underlay membranes
TESCON VANAthis page
Also in damp conditions, indoors and outdoors
Smooth, non-mineral components, for example pipes and roof windows
One sleeve per penetration instead of strips of tape
How the tape fits into the system
TESCON VANA is the system tape for the joints of pro clima vapour barriers. Use membrane and accessories from one system so that the manufacturer’s warranty applies.
Prepare the substrate
Dry, dust-free and firm. The tape does not hold on loose or mineral surfaces.
Lay and bond the membranes
Overlap at least 10 cm and press the tape firmly and without wrinkles over the joint.
Indoors it bonds vapour barriers, airtightness membranes and airtight wood-based boards. Outdoors it additionally bonds underlay, sarking and wall sheathing membranes windtight.
Does TESCON VANA fit INTELLO and INTELLO PLUS?
Yes. It is the system tape for the joints of these pro clima vapour barriers.
How long may the tape be exposed to the weather?
Up to 6 months. Plan the roofing or cladding within that time.
Does TESCON VANA hold on masonry and plaster?
It is not intended for that. On mineral substrates use connection adhesive or connection tape from the pro clima system.
Can I plaster over the tape?
Yes. The fleece carrier can be plastered over directly.
How many rolls do I need?
As a rule of thumb for the longitudinal joints, allow about 0.7 m of tape per m² of membrane, plus a reserve for cross joints and connections. One roll has 30 m. The quantity calculator on this page does the maths for you.
Unsure which tape suits your membrane?
We advise you on tape, membrane and connection details.
