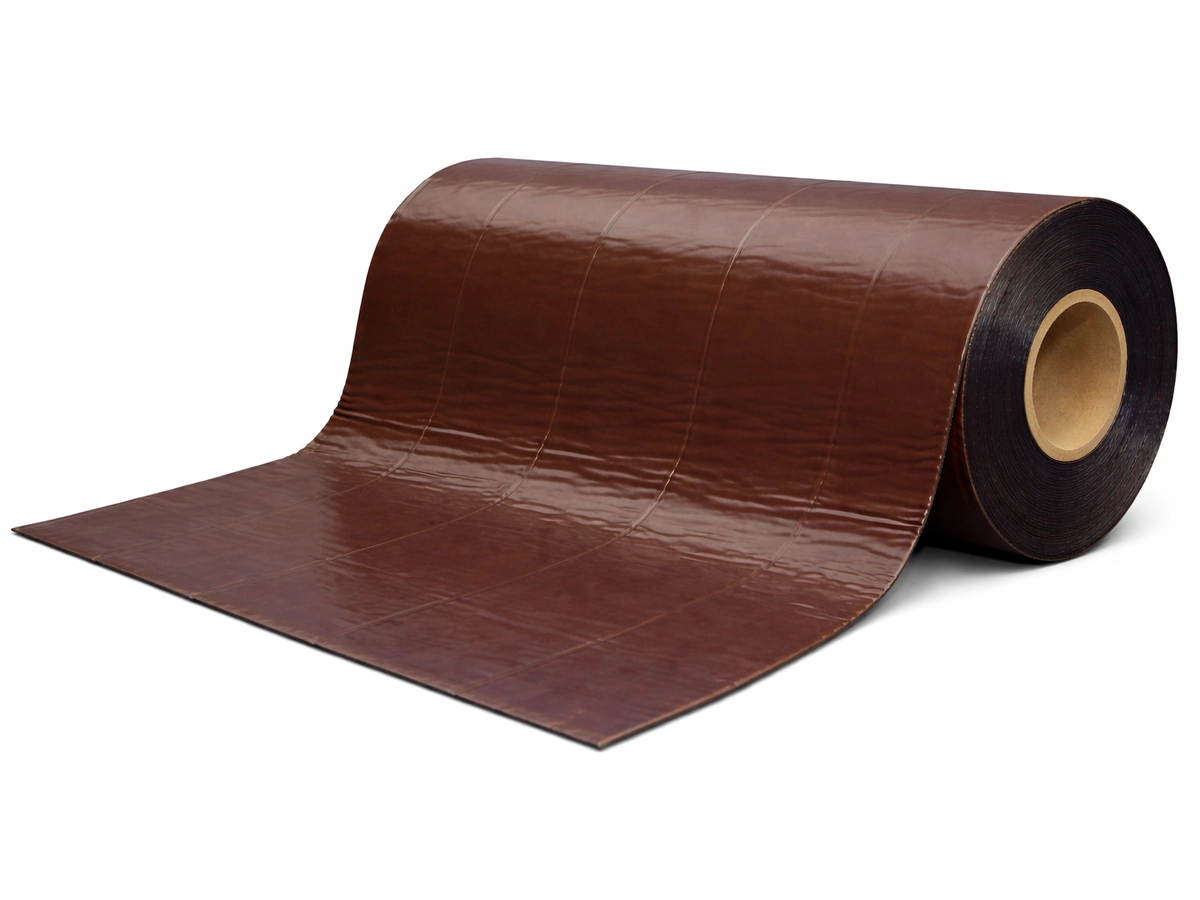

Self-Adhesive Aluminium Roof Waterproofing Membrane Brown 1 m x 10 m - 10 m²
Cold-applied, flame-free, UV- and weather-resistant aluminium top layer, waterproof.
This self-adhesive roof waterproofing membrane based on elastomer bitumen is a practical solution for permanently watertight roof surfaces. It is ideal for garden houses, tool sheds, carports, extensions and slightly pitched roofs.
The membrane is cold-applied, requires no open flame and offers strong adhesion as well as a UV-resistant coated aluminium top layer.
Key Facts
- Self-adhesive and cold-applied, no open flame required
- Fast installation, ideal for DIY users and professionals
- Strong adhesion when applied correctly
- UV-resistant coated aluminium surface, robust and weatherproof
- Suitable for garden houses, tool sheds, carports, extensions and slightly pitched roofs
- Roll size: 1 m x 10 m = 10 m²
- Heavy-duty quality with approx. 1.5 mm thickness
- Made in Germany
Advantages
- Self-adhesive, flame-free application
- UV- and weather-resistant surface
- Waterproof sealing when applied correctly
- Strong adhesive strength
- Robust aluminium top layer
- Fast and easy installation
Suitable Substrates
Suitable substrates include concrete, masonry, metal, plastics except PVC, and dry, non-resinous wood.
The substrate must be dry, dust-free, silicone-free, grease-free, abrasion-resistant and load-bearing. Porous or slightly contaminated substrates should be prepared with a bituminous primer. The primer must be allowed to dry completely.
Application
- Recommended application temperature from approx. +15 °C membrane and surface temperature
- Use Bitumen Primer V on old wood, concrete and existing bitumen membranes
- Use universal primer on sanding or chalking surfaces
- Install the membrane lengthwise in the direction of the slope
- Remove the protective film section by section
- Roll out the membrane evenly and press or roll firmly
- Avoid air pockets
- Press or roll overlaps carefully

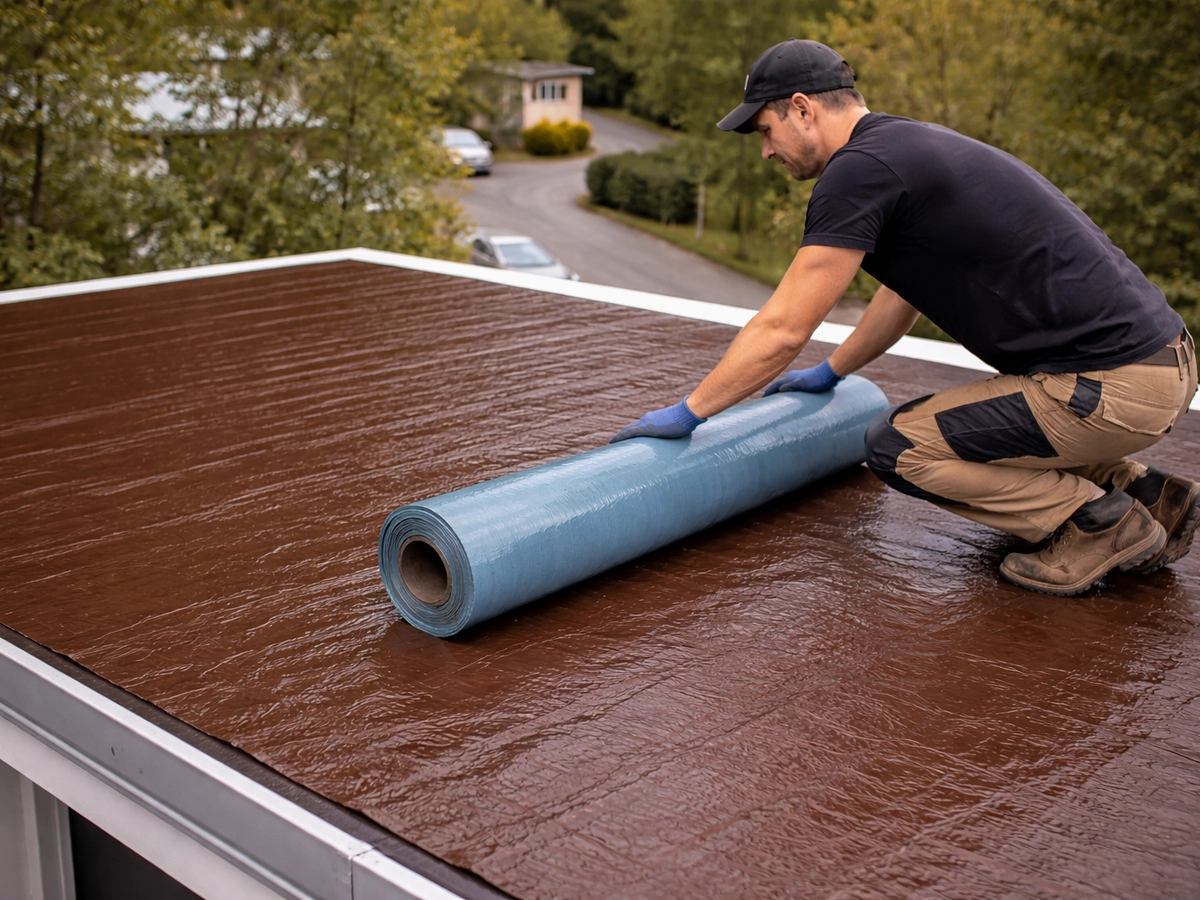

Product Images and Application
Technical Data
| Format / Area | 1.0 m x 10.0 m, 10 m² per roll |
| Colour / Top layer | Brown, coated aluminium top layer, UV-resistant |
| Mass per unit area | 1.5 kg/m² ± 0.2 according to DIN EN 1849-1 |
| Membrane thickness | 1.5 mm ± 0.2 according to DIN EN 1849-1 |
| Softening point | ≥ 85 °C according to DIN EN 1427 |
| Cold bending behaviour | ≤ -20 °C according to DIN EN 1109 |
| Maximum tensile force | > 200 N / 50 mm according to DIN EN 12311-1 |
| Watertightness | passed 2 kPa according to DIN EN 1928 |
| Water vapour permeability sd value | > 1500 m according to DIN EN 1931 |
| Adhesion strength | > 30 N / 25 mm according to DIN EN 1939 |
Data Sheet and Installation PDF
